ORIS 2D Module for hatching areas
Step-by-step guide to access, create and edit your ORIS 2D projects in Civil 3D and AutoCAD
Get Started
ORIS 2D Module for Hatching Areas
Updated: Mar 14, 2025
Description
Step-by-step guide to access, create and edit your ORIS 2D projects in Civil 3D and AutoCAD.
Steps
1
ORIS 2D Module for hatching areas
2
In the "Pavement Design Library" you can create and edit your own pavement catalogues.
3
Video step
4
You can select a "Pavement Design Option", from the list on the left.
5
Video step
6
If you are adding new layers, you can retrieve the material from one of your material libraries or "Material Tables".
7
Video step
8
You can also add a new layer by selecting an existing one and clicking the "Duplicate" button.
9
Video step
10
Do not forget to save any changes made in the "Pavement Design Library".
11
Video step
12
Including the duplication of a pavement design.
13
Video step
14
Video step
15
Video step
16

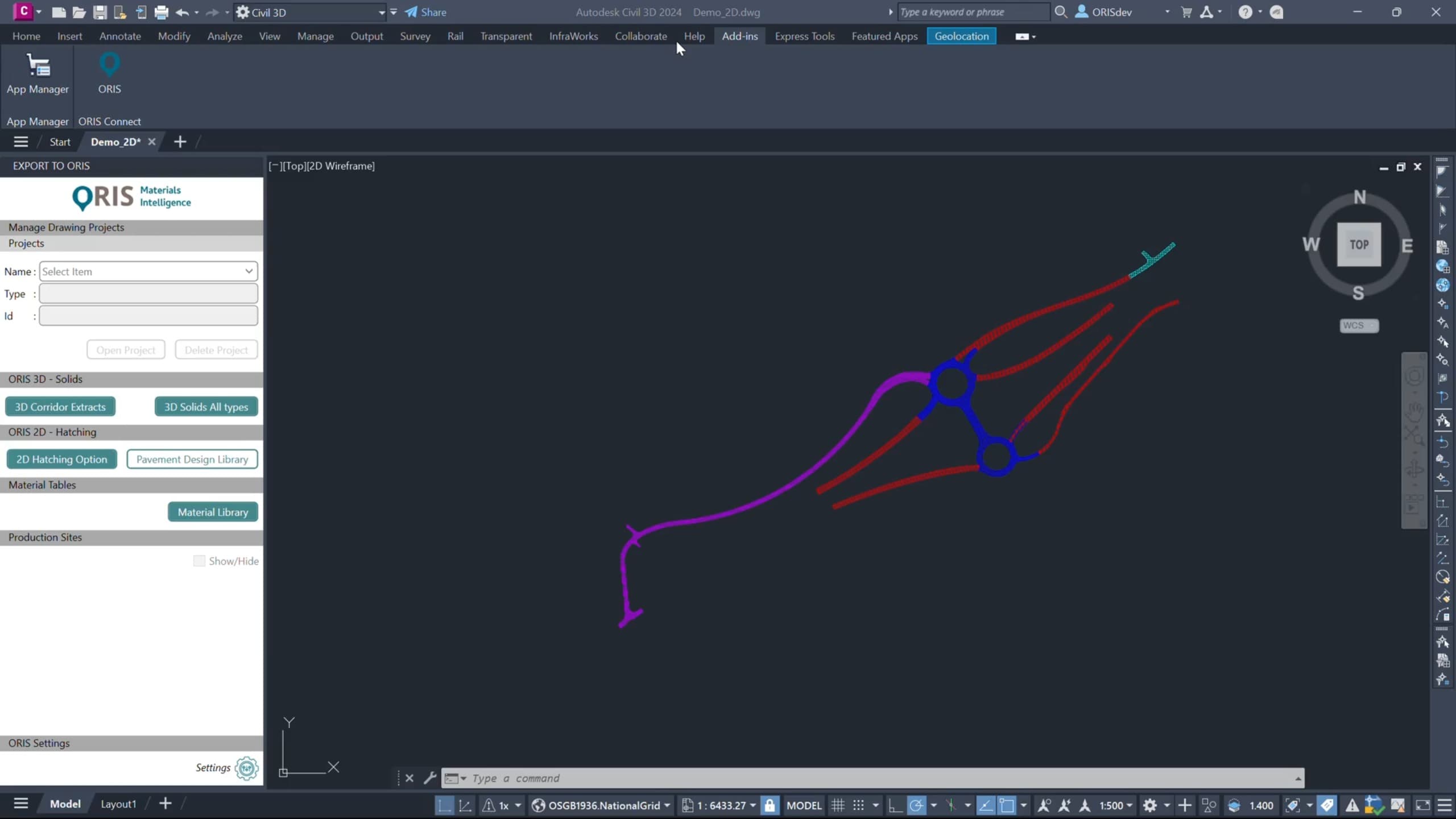

Once you have defined your pavement designs in the "Pavement Design Library" you can go to "ORIS 2D Hatching Option".
17
Video step
18
Then, a pavement design must be selected for each layer.
19
The first method is using the "Match Design Option" button. It will identify any pavement designs within the "Pavement Design Library" that can match the name of the layer.
20
Video step
21
The second method is by simply clicking on "Select Item" to see a dropdown menu from which a pavement design can be selected from those included in the "Pavement Design Library".
22
Video step
23
Video step
24
And the third method is selecting "No Design" from the dropdown list.
25
Video step
26
Video step
27
Once you have defined a pavement design, you need to export the project to ORIS.
28
Video step
29
Now you need to log into your ORIS account to export the project to ORIS.
30
Video step
31
After exporting each project to ORIS, a new window will be opened in your browser to complete the material assessment in ORIS platform.
32
Video step
33
If you update your pavement design in Civil 3D or AutoCAD, the status of the layer will change to "Need Update" and you will need to click in "Update ORIS Materials" to update the material assessment in ORIS platform.
34
If you wish to create more than one project per drawing layer, you just simply need to click "Create New Project".
35
Video step
36
And rename the new project accordingly.
37
Video step
38
You can also access and edit your 2D - Hatching projects from this menu, with access to the same functionalities as in the "ORIS 2D - Hatching" module.
39
Video step
40
Here you can modify the pavement design from the same dropdown menu as in the ORIS 2D-Hatching module.
41
